DA - v3 (1992)

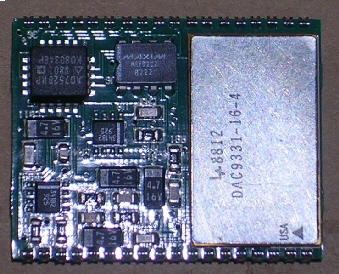

Acxel - DA version 3 (1992)

Double DA converter on a module comprising a 16 bits DA converter with a second 8 bits converter of acting like control voltage filter.

Each converter of this version received the signal processed by a DSP which captured the signals out of the Harmonic Processors

Mixer - v1 (1988)
DA - v2 (1988)

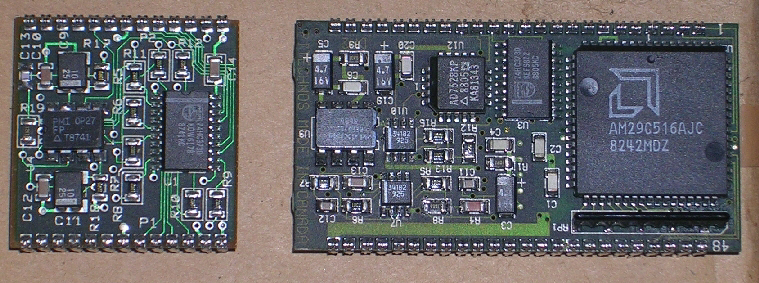

Acxel - DA version 2, Mixer version 1 (1988)

Double DA converter on a module comprising an 8 bits level control and 16 bits DA converter, for the signal. Each converter of this version was coupled with a Harmonic Processor.

Each mixer managed one of the 8 Acxel's outputs.

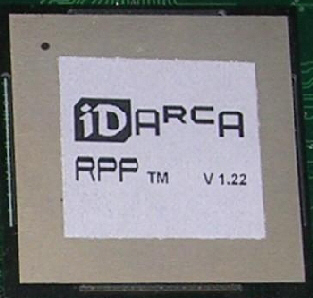

RPP (2008) - picture

RPP circuit (picture: 4.3 cm X 4.3 cm) of Acxel II (2008) which integrates 256 extended cells, on FPGA device.

RPP (2009, 2012)

RPP circuit (2.7cm x 2.7 cm) (2009, 2012) which now integrates 1024 cells (in audio and processing mode), on FPGA device that can migrate to ASIC.
Acxel II - RPP (2008)

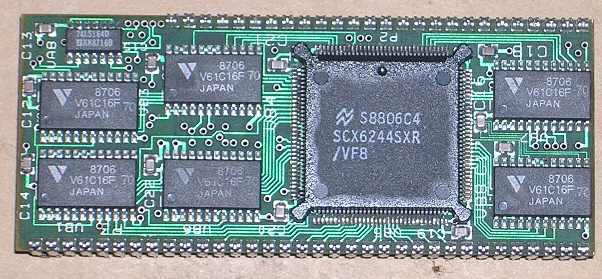

Harmonic Processor  (1987) - Picture

The Harmonic Processor module (8.9 cm X 3.8 cm) incorporated 2 specialized integrated circuits, the other components are memories of parameters and for the waveforms, the components are assembled on both sides of the module.

Each Harmonic Processor integrates 32 Cells
Acxel - Harmonic Processor (1987)
Throughout the development starting from the first elements of the Harmonic Processor on the 16until original Acxel, the factor of integration is 110, that is to say the factor of reduction for the same number of cells for a surface is 110 times less for the Acxel's Harmonic Processor compared with the corresponding 16 initial circuit.

In addition the last Acxel 2 processor , the current RPP, is over 16000 times smaller than the original Harmonic Processor. RPP integrated on Asic which will be functionally identical to current RPP.

Moreover higher performances of the successive versions in terms of parameters and specific functions, are not taken into account.
Acxel - OtherModules

DA Converters(Versions)
Mixer
RPP & Technology - Integration


The neuralgic elements of the 16and the original Acxel then of Acxel 2 knew an integration of a factor of almost 1600.
HISTORY
ACXEL-AUDIO & RPP


INTEGRATION
Length
cm
Width
cm
Area
cm2
Cells
Area/ Cell.
INTEG
Ratio
16p version 1
61
30
1858
16
116
1
16p version 2
30
23
697
64
10.9
11
Acxel
8.9
3.8
34
32
1.0585
110
Acxel 2 v-2008
4.3
4.3
18.5
256
0.0723
1604
Acxel 2 * generic
v-2009
2.7
2.7
7.3
256(*)
0.0285
4070
Acxel 2 * generic
v-2012
2.7
2.7
7.3
1024(*)
0.0071
16338
(*) Generic functions CELLS
